CIRCULAR 110 - 36 LEDS

< Back

Darkoo

Home poke Connector

CNC

ø110mm

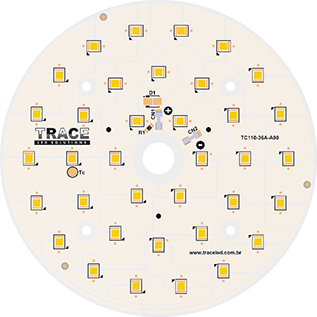

Illustrative image

Main applications:

Spots
Ceiling light
Sconce
Pendant

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000837	CIRCULAR 110 - 36 LEDS 1800 lm 827 CNC	2700K	1785	143	35,76	350	12,52
P0000838	CIRCULAR 110 - 36 LEDS 1800 lm 830 CNC	3000K	1843	147
P0000839	CIRCULAR 110 - 36 LEDS 1800 lm 840 CNC	4000K	1889	151
P0000840	CIRCULAR 110 - 36 LEDS 1800 lm 850 CNC	5000K	2024	162
P0000841	CIRCULAR 110 - 36 LEDS 3700 lm ADV 827 CNC	2700K	3622	148	70,08	350	24,53
P0000842	CIRCULAR 110 - 36 LEDS 3700 lm ADV 830 CNC	3000K	3755	153
P0000843	CIRCULAR 110 - 36 LEDS 3700 lm ADV 840 CNC	4000K	3808	155
P0000844	CIRCULAR 110 - 36 LEDS 3700 lm ADV 850 CNC	5000K	3923	160

Model	LED Driver	Current (mA)	Expected PWR (W)
CIRCULAR 110 - 36 LEDS 1800 lm 8xx	AT12C350-46P	350	14,4
CIRCULAR 110 - 36 LEDS 3700 lm ADV 8xx	AT30C350-48P	350	28,2

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (CIRCULAR 1800 lm Tc = 70ºC, CIRCULAR 3700 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Kits with Lens Included

Internal Code	Description	Lens Model	Manufacture
P0000904	KIT CIRCULAR 110 - 36 LEDS 1800 lm 827 CNC + LB15	DK110-15-LENS-36H1-Z	Darkoo
P0000905	KIT CIRCULAR 110 - 36 LEDS 1800 lm 830 CNC + LB15
P0000906	KIT CIRCULAR 110 - 36 LEDS 1800 lm 840 CNC + LB15
P0000907	KIT CIRCULAR 110 - 36 LEDS 1800 lm 850 CNC + LB15
P0000908	KIT CIRCULAR 110 - 36 LEDS 1800 lm 827 CNC + LB24	DK110-24-LENS-36H1-Z
P0000909	KIT CIRCULAR 110 - 36 LEDS 1800 lm 830 CNC + LB24
P0000910	KIT CIRCULAR 110 - 36 LEDS 1800 lm 840 CNC + LB24
P0000911	KIT CIRCULAR 110 - 36 LEDS 1800 lm 850 CNC + LB24
P0000912	KIT CIRCULAR 110 - 36 LEDS 1800 lm 827 CNC + LB36	DK110-36-LENS-36H1-Z
P0000913	KIT CIRCULAR 110 - 36 LEDS 1800 lm 830 CNC + LB36
P0000914	KIT CIRCULAR 110 - 36 LEDS 1800 lm 840 CNC + LB36
P0000915	KIT CIRCULAR 110 - 36 LEDS 1800 lm 850 CNC + LB36
P0000916	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 827 CNC + LB15	DK110-15-LENS-36H1-Z
P0000917	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 830 CNC + LB15
P0000918	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 840 CNC + LB15
P0000919	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 850 CNC + LB15
P0000920	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 827 CNC + LB24	DK110-24-LENS-36H1-Z
P0000921	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 830 CNC + LB24
P0000922	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 840 CNC + LB24
P0000923	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 850 CNC + LB24
P0000924	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 827 CNC + LB36	DK110-36-LENS-36H1-Z
P0000925	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 830 CNC + LB36
P0000926	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 840 CNC + LB36
P0000927	KIT CIRCULAR 110 - 36 LEDS 3700 lm ADV 850 CNC + LB36

Lens

Dimension: Diâmetro 110mm

LED quantity: 36

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
