OVAL 182x27 1500

CATALOGUE

OVAL 182x27 1500 - 6 LEDS

< Back

Home poke Connector

CNB

Darkoo

182 x 27mm

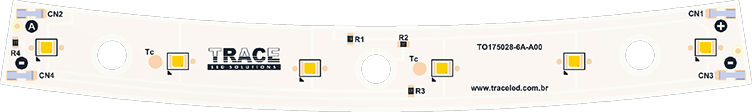

Illustrative image

General Application:

Commercial Light
Pendents

Código Interno	Modelo	Temp. de Cor	Fluxo Luminoso (lm)	Eficiência (lm/W)	Tensão (Vdc)	Corrente (mA)	Potência (W)
P0001191	OVAL 182x27 1500 - 6 LEDS 800 lm ADV 827 CNB	2700K	757	140	36,16	150	5,43
P0001192	OVAL 182x27 1500 - 6 LEDS 800 lm ADV 830 CNB	3000K	784	145
P0001193	OVAL 182x27 1500 - 6 LEDS 800 lm ADV 840 CNB	4000K	795	147
P0001194	OVAL 182x27 1500 - 6 LEDS 800 lm ADV 850 CNB	5000K	821	151
P0001195	OVAL 182x27 1500 - 6 LEDS 900 lm ADV 827 CNB	2700K	868	134	18,48	350	6,47
P0001196	OVAL 182x27 1500 - 6 LEDS 900 lm ADV 830 CNB	3000K	900	139
P0001197	OVAL 182x27 1500 - 6 LEDS 900 lm ADV 840 CNB	4000K	913	141
P0001198	OVAL 182x27 1500 - 6 LEDS 900 lm ADV 850 CNB	5000K	943	146

Modelo	LED Driver	Corrente (mA)	Pot. Prevista (W)
OVAL 182X27 - 6 LEDS 800 lm ADV 8xx	-	-	-
OVAL 182X27 - 6 LEDS 900 lm ADV 8xx	AT8C350-45P	350	7,45

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (OVAL 800 lm Tc = 65ºC, OVAL 900 lm Tc = 63ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimensions: 195 x 30 mm

LED Quantity: 6

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
