PENTE 200 - 48 LEDS

< Back

Push-pull connector

CNC

200 x 200mm

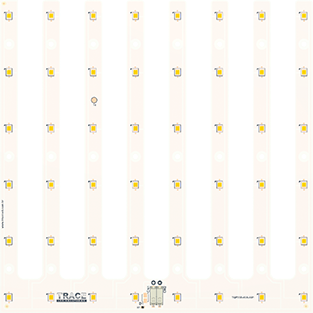

Illustrative image

Main applications:



  • Ceiling light
  • Sconce
  • Pendant
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000088 PENTE 200 - 48 LEDS 3500 lm 827 CNC  2700K 2441 142 71,79 240 17,23
3405 127 76,41 350 26,74
P0000089 PENTE 200 - 48 LEDS 3500 lm 830 CNC  3000K 2520 146 71,79 240 17,23
3516 131 76,41 350 26,74
P0000090 PENTE 200 - 48 LEDS 3500 lm 840 CNC  4000K 2583 150 71,79 240 17,23
3604 135 76,41 350 26,74
P0000091 PENTE 200 - 48 LEDS 3500 lm 850 CNC  5000K 2768 161 71,79 240 17,23
3875 145 76,41 350 26,74
Model LED Driver Current (mA) Expected PWR (W)
PENTE 200 - 48 LEDS 3500 lm 8xx AT30C240-48P 240 19,5
PENTE 200 - 48 LEDS 3500 lm 8xx AT30C350-48P 350 30
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 75ºC (PENTE 3500 lm Tc = 67ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Documents

Datasheet PT-BR
