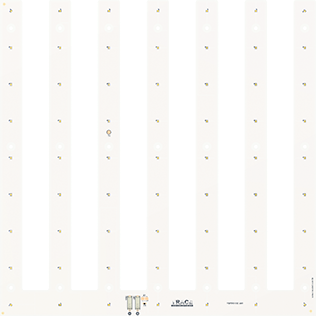

PENTE 280 - 63 LEDS OA
Main applications:
- Ceiling light
- Sconce
- Pendant
| Internal Code | Model | CCT | Luminous Flux (lm) | Efficiency (lm/W) | Voltage (Vdc) | Current (mA) | Power (W) |
| P0000084 | PENTE 280 - 63 LEDS 2800 lm OA 827 CNC | 2700K | 2765 | 128 | 61,81 | 350 | 21,64 |
| P0000085 | PENTE 280 - 63 LEDS 2800 lm OA 830 CNC | 3000K | 2825 | 131 | |||
| P0000086 | PENTE 280 - 63 LEDS 2800 lm OA 840 CNC | 4000K | 2884 | 133 | |||
| P0000087 | PENTE 280 - 63 LEDS 2800 lm OA 850 CNC | 5000K | 3004 | 139 |
| Model | LED Driver | Current (mA) | Expected PWR (W) |
| PENTE 280 - 63 LEDS 2800 lm OA 8xx | AT18C350-47P | 350 | 24,8 |
- Other CCT on request.
- The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (PENTE 2800 lm Tc = 61ºC).
- Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.
Documents
Datasheet PT-BR
