PENTE 300 - 64 LEDS

< Back

Push-pull connector

CNC

300 x 300mm

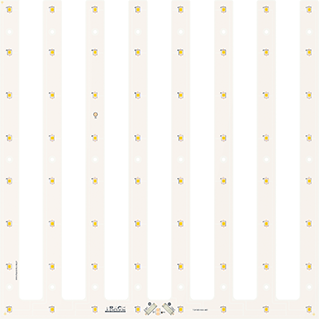

Illustrative image

Main applications:



  • Ceiling light
  • Sconce
  • Pendant
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000092 PENTE 300 - 64 LEDS 4500 lm 827 CNC  2700K 3255 142 95,72 240 22,97
4541 127 101,88 350 35,66
P0000093 PENTE 300 - 64 LEDS 4500 lm 830 CNC  3000K 3360 146 95,72 240 22,97
4688 131 101,88 350 35,66
P0000094 PENTE 300 - 64 LEDS 4500 lm 840 CNC  4000K 3445 150 95,72 240 22,97
4805 135 101,88 350 35,66
P0000095 PENTE 300 - 64 LEDS 4500 lm 850 CNC  5000K 3691 161 95,72 240 22,97
5167 145 101,88 350 35,66
Model LED Driver Current (mA) Expected PWR (W)
PENTE 300 - 64 LEDS 4500 lm 8xx AT30C240-48P 240 25,5
PENTE 300 - 64 LEDS 4500 lm 8xx AT30C350-48P 350 39,5
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 75ºC (PENTE 4500 lm Tc = 67ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.
