RETANGULAR 110x120 - 36 LEDS 219

CATALOGUE

< Back

Kathod

Push-pull connector

CNB

110 x 120mm

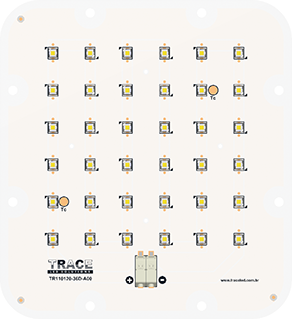

Illustrative image

Main applications:

Street Lights
Floodlights
Luminárias para estádios

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000968	RETANGULAR 110x120 - 36 LEDS 219 14000 lm 727 CNB	2700K	13452	120	107,2	1050	112,6
P0000969	RETANGULAR 110x120 - 36 LEDS 219 14000 lm 730 CNB	3000K	13968	124
P0000970	RETANGULAR 110x120 - 36 LEDS 219 14000 lm 740 CNB	4000K	14999	133
P0000971	RETANGULAR 110x120 - 36 LEDS 219 14000 lm 750 CNB	5000K	14973	133
P0000972	RETANGULAR 110x120 - 36 LEDS 219 13000 lm 827 CNB	2700K	12301	109
P0000973	RETANGULAR 110x120 - 36 LEDS 219 13000 lm 830 CNB	3000K	12987	115
P0000974	RETANGULAR 110x120 - 36 LEDS 219 13000 lm 840 CNB	4000K	13673	121
P0000975	RETANGULAR 110x120 - 36 LEDS 219 13000 lm 850 CNB	5000K	12893	115

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (RETANGULAR 14000 lm Tc = 71ºC e RETANGULAR 13000 lm Tc = 71ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 110 x 120 mm

LED quantity: 36

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
