RETANGULAR 110x120 - 36 LEDS DMC

< Back

Kathod

Push-pull connector

CNB

110 x 120mm

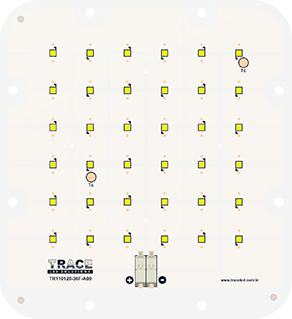

Illustrative image

Main applications:



  • Street Lights
  • Floodlights
  • Luminárias para estádios
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000976 RETANGULAR 110x120 - 36 LEDS DMC 15000 lm 740 CNB 4000K 15192 136 106,77 1050 112,12
P0000977 RETANGULAR 110x120 - 36 LEDS DMC 15000 lm 750 CNB 5000K 15277 136
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 85ºC (RETANGULAR 15000 lm Tc = 84ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 110 x 120 mm

LED quantity: 36





Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

Documents

Datasheet PT-BR
