RETANGULAR 123X101 - 16 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil,

Led Link e Kathod

Push-pull connector

CNC

123 x 101mm

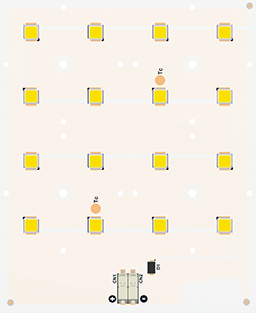

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000845	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 727 CNB	2700K	8484	153	39,7	1400	55,58
P0000845	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 727 CNB	2700K	12302	141	41,46	2100	87,08
P0000846	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 730 CNB	3000K	9452	173	39,1	1400	54,75
P0000846	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 730 CNB	3000K	13705	160	40,84	2100	85,78
P0000847	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 740 CNB	4000K	9658	176	39,1	1400	54,75
P0000847	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 740 CNB	4000K	14004	163	40,84	2100	85,78
P0000848	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 750 CNB	5000K	9420	172	39,1	1400	54,75
P0000848	RETANGULAR 123x101 - 16 LEDS 488 13000 lm 750 CNB	5000K	13685	160	40,84	2100	85,78

Model	LED Driver	Current (mA)	Expected PWR (W)
RETANGULAR 123x101 - 16 LEDS 488 13000 lm 7xx	AT75C1400-108P	1400	62
RETANGULAR 123x101 - 16 LEDS 488 13000 lm 7xx	AT105C2100-110P	2100	96

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (RETANGULAR 13000 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
