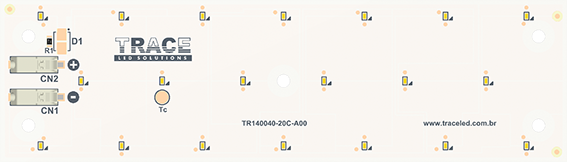

RETANGULAR 140X40 - 20 LEDS OA
Main applications:
- Ceiling light
- Sconce
- Pendant
- Decorative Light
| Internal Code | Model | CCT | Luminous Flux (lm) | Efficiency (lm/W) | Voltage (Vdc) | Current (mA) | Power (W) |
| P0000096 | RETANGULAR 140X40 - 20 LEDS 700 lm OA 827 CNB | 2700K | 685 | 136 | 14,43 | 350 | 5,05 |
| P0000097 | RETANGULAR 140X40 - 20 LEDS 700 lm OA 830 CNB | 3000K | 699 | 139 | |||
| P0000098 | RETANGULAR 140X40 - 20 LEDS 700 lm OA 840 CNB | 4000K | 714 | 141 | |||
| P0000099 | RETANGULAR 140X40 - 20 LEDS 700 lm OA 850 CNB | 5000K | 744 | 147 |
| Model | LED Driver | Current (mA) | Expected PWR (W) |
| RETANGULAR 140X40 - 20 LEDS 700 lm OA 8xx | AT8C350-45 | 350 | 6,15 |
- Other CCT on request.
- The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (RETANGULAR 700 lm Tc = 64ºC).
- Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.
Documents
Datasheet PT-BR
