RETANGULAR 140X40 AC - 8 LEDS (110V/220V)

Driver on Board

110Vac ou 220Vac

Push-pull connector

CNB

140 x 40mm

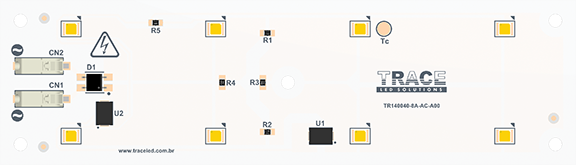

Illustrative image

Main applications:



  • Beacon (Garden, garage, etc)
  • Sconce
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0001105 RETANGULAR 140x40 AC - 8 LEDS 780 lm 827 110V CNC 2700K 780 80 110V 85 9,40
P0001106 RETANGULAR 140x40 AC - 8 LEDS 780 lm 840 110V CNC 4000K 810 85
P0001107 RETANGULAR 140x40 AC - 8 LEDS 780 lm 857 110V CNC 5700K 840 90
P0001108 RETANGULAR 140x40 AC - 8 LEDS 780 lm 827 220V CNC 2700K 780 80 220V 42
P0001109 RETANGULAR 140x40 AC - 8 LEDS 780 lm 840 220V CNC 4000K 810 85
P0001110 RETANGULAR 140x40 AC - 8 LEDS 780 lm 857 220V CNC 5700K 840 90
  • Standard CCTs: 2700K, 4000K e 5700K. Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 75ºC (CIRCULAR 1000 lm Tc = 65ºC).
  • Voltage: 110Vac (100 Vac a 130 Vac), Voltage: 220Vac (180 Vac a 240Vac)
