RETANGULAR 146X045 - 12 LEDS (219/319)

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Home poke Connector

CNC

146 x 45mm

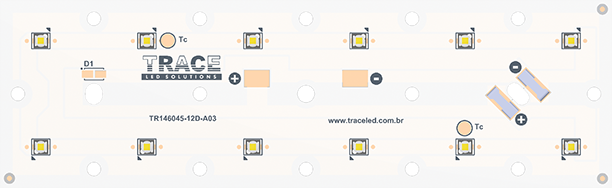

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000116	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 727 CNC	2700K	3196	133	34,45	700	24,11
P0000116	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 727 CNC	2700K	4484	120	35,73	1050	37,52
P0000117	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 730 CNC	3000K	3319	138	34,45	700	24,11
P0000117	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 730 CNC	3000K	4656	124	35,73	1050	37,52
P0000118	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 740 CNC	4000K	3564	148	34,45	700	24,11
P0000118	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 740 CNC	4000K	4999	133	35,73	1050	37,52
P0000119	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 750 CNC	5000K	3564	148	34,45	700	24,11
P0000119	RETANGULAR 146x045 - 12 LEDS 4500 lm ADV 750 CNC	5000K	4991	133	35,73	1050	37,52
P0000120	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 727 CNC	2700K	4732	130	34,77	1050	36,5
P0000120	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 727 CNC	2700K	6028	121	35,64	1400	49,9
P0000121	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 730 CNC	3000K	4899	134	34,77	1050	36,5
P0000121	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 730 CNC	3000K	6241	125	35,64	1400	49,9
P0000122	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 740 CNC	4000K	5278	145	34,77	1050	36,5
P0000122	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 740 CNC	4000K	6723	135	35,64	1400	49,9
P0000123	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 750 CNC	5000K	5310	145	34,77	1050	36,5
P0000123	RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 750 CNC	5000K	6770	136	35,64	1400	49,9

Model	LED Driver	Current (mA)	Expected PWR (W)
RETANGULAR 146x045 - 12 LEDS 4500 lm ADV xxx	AT45C700-106P	700	26,5
RETANGULAR 146x045 - 12 LEDS 4500 lm ADV xxx	AT45C1050-106P	1050	41,5
RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 7xx	AT45C1050-106P	1050	40,2
RETANGULAR 146x045 - 12 LEDS 6400 lm ADV 7xx	AT75C1400-108P	1400	55

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (RETANGULAR 4500 lm Tc = 71ºC e RETANGULAR 6400 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 173 x 72 mm

LED quantity: 12

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
