RETANGULAR 146X045 - 12 LEDS 481

< Back

Darkoo, Ledil

LED Link e Kathod

Home poke Connector

CNC

146 x 45mm

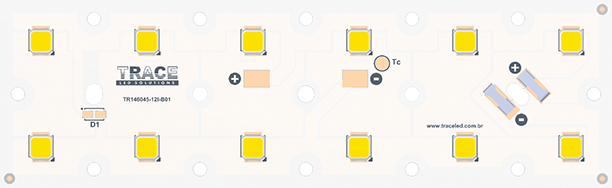

Illustrative image

Main applications:



  • Street Lights
  • Street Lights
  • Floodlights
  • Commercial Light
  • High Bays
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000252 RETANGULAR 146x045 - 12 LEDS 481 5500 lm 727 CNC 2700K 4347 155 40,13 700 28,09
6246 140 42,51 1050 44,64
P0000253 RETANGULAR 146x045 - 12 LEDS 481 5500 lm 730 CNC 3000K 4480 160 40,13 700 28,09
6439 144 42,51 1050 44,64
P0000254 RETANGULAR 146x045 - 12 LEDS 481 5500 lm 740 CNC 4000K 4614 164 40,13 700 28,09
6631 149 42,51 1050 44,64
P0000255 RETANGULAR 146x045 - 12 LEDS 481 5500 lm 750 CNC 5000K 4614 164 40,13 700 28,09
6631 149 42,51 1050 44,64
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 85ºC (RETANGULAR 5500 lm Tc = 67ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 173 x 72 mm

LED quantity: 12





Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

Documents

Datasheet PT-BR

Model LED Driver Current (mA) Expected PWR (W)
RETANGULAR 146x045 - 12 LEDS 481 5500 lm xxx AT45C700-106P 700 31
AT45C1050-106P 1050 49,2
