RETANGULAR 146X045 - 12 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Home poke Connector

CNC

146 x 45mm

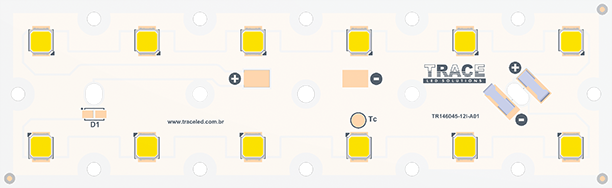

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000244	RETANGULAR 146x045 - 12 LEDS 488 11000 lm 727 CNC	2700K	4343	162	38,36	700	26,86
			6363	153	39,7	1050	41,69
			8292	145	40,9	1400	57,26
			11917	132	43,09	2100	90,48
P0000245	RETANGULAR 146x045 - 12 LEDS 488 11000 lm 730 CNC	3000K	4838	183	37,82	700	26,48
			7089	173	39,1	1050	41,06
			9239	164	40,29	1400	56,41
			13271	149	42,41	2100	89,07
P0000246	RETANGULAR 146x045 - 12 LEDS 488 11000 lm 740 CNC	4000K	4944	187	37,82	700	26,48
			7243	176	39,1	1050	41,06
			9440	167	40,29	1400	56,41
			13561	152	42,41	2100	89,07
P0000247	RETANGULAR 146x045 - 12 LEDS 488 11000 lm 750 CNC	5000K	4816	182	37,82	700	26,48
			7065	172	39,1	1050	41,06
			9220	163	40,29	1400	56,41
			13278	149	42,41	2100	89,07

Model	LED Driver	Current (mA)	Expected PWR (W)
RETANGULAR 146x045 - 12 LEDS 488 11000 lm xxx	AT45C1050-106P	1050	46
	AT75C1400-108P	1400	63
	AT105C2100-110P	2100	100

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (RETANGULAR 11000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 173 x 72 mm

LED quantity: 12

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
