RETANGULAR 146X045 - 12 LEDS DMC

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Home poke Connector

CNC

146 x 45mm

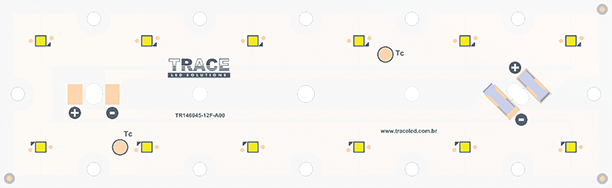

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000260	RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 740 CNC	4000K	3602	149	34,55	700	24,18
P0000260	RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 740 CNC	4000K	5064	136	35,59	1050	37,37
P0000261	RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 750 CNC	5000K	3623	150	34,55	700	24,18
P0000261	RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 750 CNC	5000K	5092	136	35,59	1050	37,37

Model	LED Driver	Current (mA)	Expected PWR (W)
RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 7xx	AT45C700-106P	700	26,5
RETANGULAR 146x045 - 12 LEDS 4500 lm DMC 7xx	AT45C1050-106P	1050	41

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (RETANGULAR 4500 lm Tc = 71ºC e RETANGULAR 6400 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 173 x 72 mm

LED quantity: 12

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
