RETANGULAR 146X045

CATALOGUE

RETANGULAR 146X045 - 36 LEDS

< Back

Darkoo

Home poke Connector

CNC

146 x 45mm

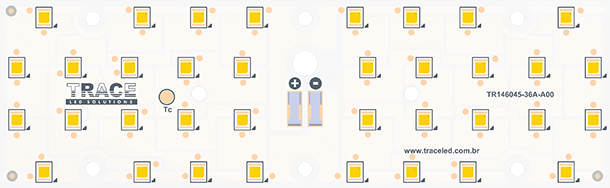

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000645	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 827 CNC	2700K	3622	148	35,04	700	24,53
P0000645	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 827 CNC	2700K	5221	135	36,95	1050	38,8
P0000646	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 830 CNC	3000K	3755	153	35,04	700	24,53
P0000646	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 830 CNC	3000K	5413	140	36,95	1050	38,8
P0000647	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 840 CNC	4000K	3808	155	35,04	700	24,53
P0000647	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 840 CNC	4000K	5490	141	36,95	1050	38,8
P0000648	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 850 CNC	5000K	3923	160	35,04	700	24,53
P0000648	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 850 CNC	5000K	5666	146	36,95	1050	38,8
P0000781	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 727 CNC	2700K	3963	162	35,04	700	24,53
P0000781	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 727 CNC	2700K	5684	147	36,95	1050	38,8
P0000782	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 730 CNC	3000K	4015	164	35,04	700	24,53
P0000782	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 730 CNC	3000K	5759	148	36,95	1050	38,8
P0000783	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 740 CNC	4000K	4225	172	35,04	700	24,53
P0000783	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 740 CNC	4000K	6060	156	36,95	1050	38,8
P0000784	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 750 CNC	5000K	4226	172	35,04	700	24,53
P0000784	RETANGULAR 146x045 - 36 LEDS 5000 lm ADV 750 CNC	5000K	6124	158	36,95	1050	38,8

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (RETANGULAR 5000 lm Tc = 63ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 173 x 72 mm

LED quantity: 36

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
