RETANGULAR 174X50

CATALOGUE

RETANGULAR 174X50 - 48 LEDS

< Back

Darkoo, Ledil

LED Link

Push-pull connector

CNB

174 x 50mm

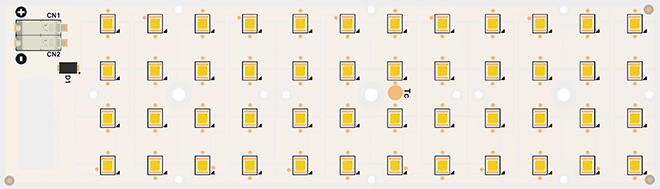

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000944	RETANGULAR 174X50 - 48 LEDS 8000 lm 727 CNB	2700K	5284	162	46,72	700	32,7
P0000944	RETANGULAR 174X50 - 48 LEDS 8000 lm 727 CNB	2700K	7579	147	49,27	1050	51,74
P0000945	RETANGULAR 174X50 - 48 LEDS 8000 lm 730 CNB	3000K	5354	164	46,72	700	32,7
P0000945	RETANGULAR 174X50 - 48 LEDS 8000 lm 730 CNB	3000K	7679	148	49,27	1050	51,74
P0000946	RETANGULAR 174X50 - 48 LEDS 8000 lm 740 CNB	4000K	5633	172	46,72	700	32,7
P0000946	RETANGULAR 174X50 - 48 LEDS 8000 lm 740 CNB	4000K	8081	156	49,27	1050	51,74
P0000947	RETANGULAR 174X50 - 48 LEDS 8000 lm 750 CNB	5000K	5635	172	46,72	700	32,7
P0000947	RETANGULAR 174X50 - 48 LEDS 8000 lm 750 CNB	5000K	8165	158	49,27	1050	51,74

Model	LED Driver	Current (mA)	Expected PWR (W)
RETANGULAR 174X50 - 48 LEDS 8000 lm 7xx	AT45C700-106P	700	36
RETANGULAR 174X50 - 48 LEDS 8000 lm 7xx	AT45C1050-106P	1050	57

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (RETANGULAR 8000 lm Tc = 63ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 16

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
