RETANGULAR 225X50 - 64 LEDS

Darkoo, Ledil

LED Link

Push-pull connector

CNB

225 x 50mm

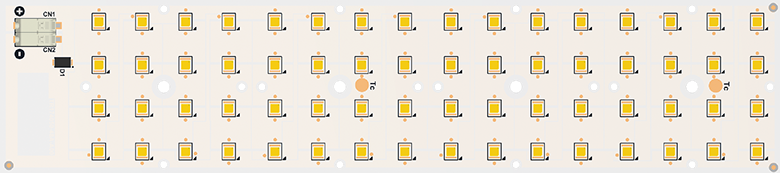

Illustrative image

Main applications:



  • Street Lights
  • Street Lights
  • Floodlights
  • Commercial Light
  • High Bays
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000948 RETANGULAR 225X50 - 64 LEDS 10000 lm 727 CNB 2700K 7835 157 47,39 1050 49,76
10105 147 49,27 1400 68,99
P0000949 RETANGULAR 225X50 - 64 LEDS 10000 lm 730 CNB 3000K 7939 160 47,39 1050 49,76
10239 148 49,27 1400 68,99
P0000950 RETANGULAR 225X50 - 64 LEDS 10000 lm 740 CNB 4000K 8354 168 47,39 1050 49,76
10775 156 49,27 1400 68,99
P0000951 RETANGULAR 225X50 - 64 LEDS 10000 lm 750 CNB 5000K 8378 168 47,39 1050 49,76
10887 158 49,27 1400 68,99
Model LED Driver Current (mA) Expected PWR (W)
RETANGULAR 225X50 - 64 LEDS 10000 lm 7xx AT45C1050-106P 1050 54,8
AT75C1400-108P 1400 75,9
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 75ºC (RETANGULAR 10000 lm Tc = 63ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 16





Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

Dimension: 253 x 74 mm

LED quantity: 64

Versão IP





Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

Documents

Datasheet PT-BR
