ZHAGA 1FT 3R - 33 LEDS

< Back

Ledil Florence

Push-pull connector

CNC

280 x 55mm

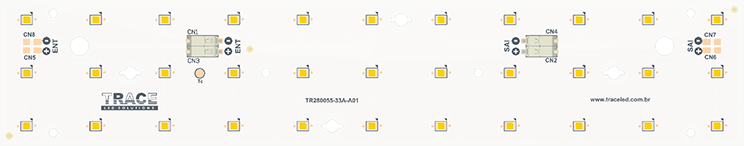

Illustrative image

Main applications:

Commercial Light
High Bays
Floodlights
Street Lights

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000104	ZHAGA 1FT 3R - 33 LEDS 3300 lm ADV 827 CNC	2700K	3320	148	64,24	350	22,48
P0000105	ZHAGA 1FT 3R - 33 LEDS 3300 lm ADV 830 CNC	3000K	3442	153
P0000106	ZHAGA 1FT 3R - 33 LEDS 3300 lm ADV 840 CNC	4000K	3491	155
P0000107	ZHAGA 1FT 3R - 33 LEDS 3300 lm ADV 850 CNC	5000K	3596	160

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 1FT 3R - 33 LEDS 3300 lm ADV 8xx	AT30C350-48P	350	26,1

Other CCT on request.

The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (ZHAGA 3300 lm Tc = 67ºC).

Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 286 x 61 mm

LED quantity: 33

This lens also has IP versions, which may vary in size.

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
