ZHAGA 1FT 3R - 66 LEDS

< Back

Ledil Florence

(only symetrical)

Push-pull connector

CNC

280 x 55mm

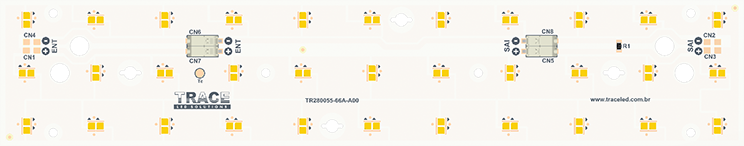

Illustrative image

Main applications:



  • Commercial Light
  • High Bays
  • Floodlights
  • Street Lights
Internal Code Model CCT Luminous Flux (lm) Efficiency (lm/W) Voltage (Vdc) Current (mA) Power (W)
P0000112 ZHAGA 1FT 3R - 66 LEDS 7000 lm ADV 827 CNC 2700K 6641 148 64,24 700 44,97
P0000113 ZHAGA 1FT 3R - 66 LEDS 7000 lm ADV 830 CNC 3000K 6885 153
P0000114 ZHAGA 1FT 3R - 66 LEDS 7000 lm ADV 840 CNC 4000K 6983 155
P0000115 ZHAGA 1FT 3R - 66 LEDS 7000 lm ADV 850 CNC 5000K 7193 160
  • Other CCT on request.
  • The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on   Tj = 75ºC (ZHAGA 7000 lm Tc = 67ºC).
  • Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 286 x 61 mm

LED quantity: 33 (Matriz de 2 LEDs por ponto).

This lens also has IP versions, which may vary in size.



Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

Documents

Datasheet PT-BR
