ZHAGA 2X2 DA - 4 LEDS (219 / 319)

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

72 x 50mm

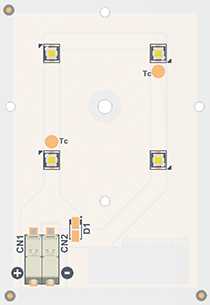

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000789	ZHAGA 2X2 DA - 4 LEDS 1600 lm 727 CNB	2700K	1065	133	11,48	700	8,04
P0000789	ZHAGA 2X2 DA - 4 LEDS 1600 lm 727 CNB	2700K	1494	120	11,91	1050	12,51
P0000790	ZHAGA 2X2 DA - 4 LEDS 1600 lm 730 CNB	3000K	1106	138	11,48	700	8,04
P0000790	ZHAGA 2X2 DA - 4 LEDS 1600 lm 730 CNB	3000K	1552	124	11,91	1050	12,51
P0000791	ZHAGA 2X2 DA - 4 LEDS 1600 lm 740 CNB	4000K	1188	148	11,48	700	8,04
P0000791	ZHAGA 2X2 DA - 4 LEDS 1600 lm 740 CNB	4000K	1666	133	11,91	1050	12,51
P0000792	ZHAGA 2X2 DA - 4 LEDS 1600 lm 750 CNB	5000K	1188	148	11,48	700	8,04
P0000792	ZHAGA 2X2 DA - 4 LEDS 1600 lm 750 CNB	5000K	1663	133	11,91	1050	12,51
P0000793	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 727 CNB	2700K	1577	130	11,59	1050	12,17
P0000793	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 727 CNB	2700K	2009	121	11,88	1400	16,63
P0000794	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 730 CNB	3000K	1633	134	11,59	1050	12,17
P0000794	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 730 CNB	3000K	2080	125	11,88	1400	16,63
P0000795	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 740 CNB	4000K	1759	145	11,59	1050	12,17
P0000795	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 740 CNB	4000K	2241	135	11,88	1400	16,63
P0000796	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 750 CNB	5000K	1770	145	11,59	1050	12,17
P0000796	ZHAGA 2X2 DA - 4 LEDS 2200 lm ADV 750 CNB	5000K	2257	136	11,88	1400	16,63

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 1600 lm Tc = 71ºC e ZHAGA 2200 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
