ZHAGA 2X2 DA 1S - 4 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

72 x 50mm

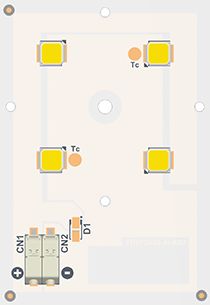

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000797	ZHAGA 2X2 DA 1S - 4 LEDS 488 4000 lm 727 CNB	2700K	3972	132	43,09	700	30,16
P0000798	ZHAGA 2X2 DA 1S - 4 LEDS 488 4000 lm 730 CNB	3000K	4423	149	42,41		29,7
P0000799	ZHAGA 2X2 DA 1S - 4 LEDS 488 4000 lm 740 CNB	4000K	4520	152
P0000800	ZHAGA 2X2 DA 1S - 4 LEDS 488 4000 lm 750 CNB	5000K	4426	149

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X2 DA 1S - 4 LEDS 488 4000 lm 7xx	AT45C700-106P	700	33,2

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 4000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
