ZHAGA 2X4 DA - 8 LEDS (219 / 319)

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

123 x 50mm

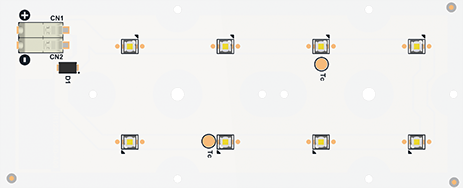

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000801	ZHAGA 2X4 DA - 8 LEDS 3200 lm 727 CNB	2700K	2131	133	22,96	700	16,07
P0000801	ZHAGA 2X4 DA - 8 LEDS 3200 lm 727 CNB	2700K	2989	120	23,82	1050	25,01
P0000802	ZHAGA 2X4 DA - 8 LEDS 3200 lm 730 CNB	3000K	2212	138	22,96	700	16,07
P0000802	ZHAGA 2X4 DA - 8 LEDS 3200 lm 730 CNB	3000K	3104	124	23,82	1050	25,01
P0000803	ZHAGA 2X4 DA - 8 LEDS 3200 lm 740 CNB	4000K	2376	148	22,96	700	16,07
P0000803	ZHAGA 2X4 DA - 8 LEDS 3200 lm 740 CNB	4000K	3333	133	23,82	1050	25,01
P0000804	ZHAGA 2X4 DA - 8 LEDS 3200 lm 750 CNB	5000K	2376	148	22,96	700	16,07
P0000804	ZHAGA 2X4 DA - 8 LEDS 3200 lm 750 CNB	5000K	3327	133	23,82	1050	25,01
P0000805	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 727 CNB	2700K	3154	130	23,18	1050	24,34
P0000805	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 727 CNB	2700K	4019	121	23,76	1400	33,27
P0000806	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 730 CNB	3000K	3266	134	23,18	1050	24,34
P0000806	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 730 CNB	3000K	4160	125	23,76	1400	33,27
P0000807	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 740 CNB	4000K	3518	145	23,18	1050	24,34
P0000807	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 740 CNB	4000K	4482	135	23,76	1400	33,27
P0000808	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 750 CNB	5000K	3540	145	23,18	1050	24,34
P0000808	ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 750 CNB	5000K	4513	136	23,76	1400	33,27

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X4 DA - 8 LEDS 3200 lm 7xx	AT15C700-46P	700	18,5
ZHAGA 2X4 DA - 8 LEDS 3200 lm 7xx	-	1050	-
ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 7xx	-	1050	-
ZHAGA 2X4 DA - 8 LEDS 4400 lm ADV 7xx	-	1400	-

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 3200 lm Tc = 71ºC e ZHAGA 4400 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
