ZHAGA 2X4 DA 1S - 8 LEDS 488

CATALOGUE

< Back

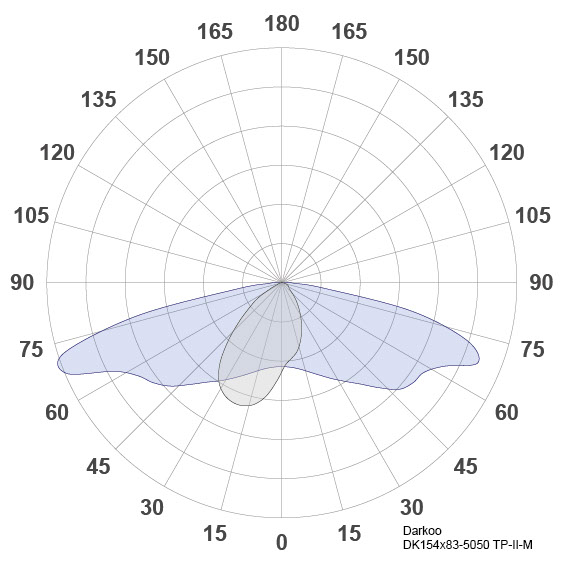

Darkoo, Ledil

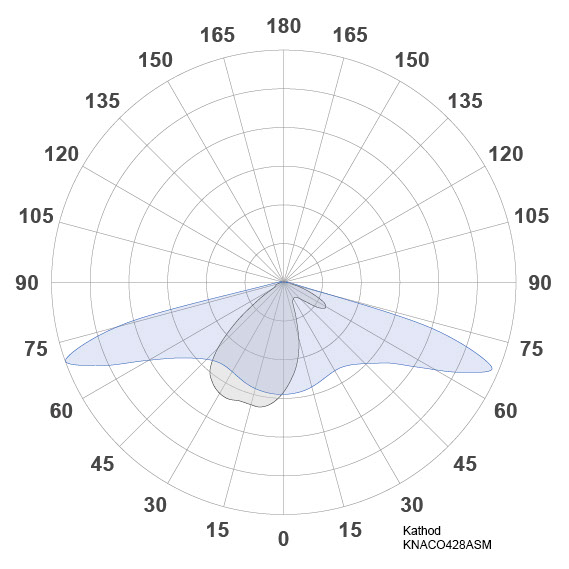

LED Link e Kathod

Push-pull connector

CNB

123 x 50mm

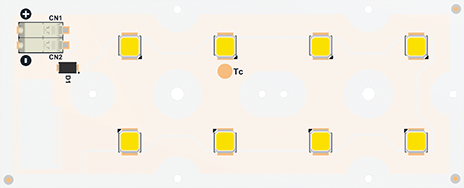

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000809	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 727 CNB	2700K	6151	141	41,46	1050	43,54
P0000809	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 727 CNB	2700K	7944	132	43,09	1400	60,32
P0000810	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 730 CNB	3000K	6852	160	40,84	1050	42,89
P0000810	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 730 CNB	3000K	8847	149	42,41	1400	59,38
P0000811	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 740 CNB	4000K	7002	163	40,84	1050	42,89
P0000811	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 740 CNB	4000K	9040	152	42,41	1400	59,38
P0000812	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 750 CNB	5000K	6842	160	40,84	1050	42,89
P0000812	ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 750 CNB	5000K	8852	149	42,41	1400	59,38

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 7xx	AT45C1050-106P	1050	47,9
ZHAGA 2X4 DA 1S - 8 LEDS 488 8000 lm 7xx	AT75C1400-108P	1400	66,4

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 8000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

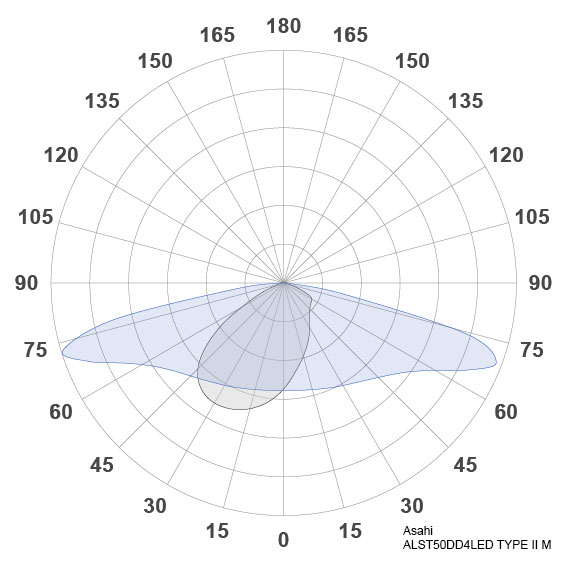

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
