ZHAGA 2X6 DA 1S - 12 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

174 x 50mm

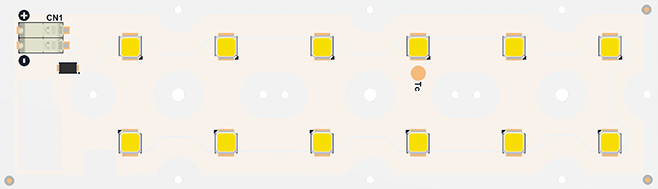

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000821	ZHAGA 2X6 DA 1S - 12 LEDS 488 12000 lm 727 CNB	2700K	6363	153	39,7	1050	41,68
			8292	145	40,9	1400	57,26
			11917	132	43,09	2100	90,48
P0000822	ZHAGA 2X6 DA 1S - 12 LEDS 488 12000 lm 730 CNB	3000K	7089	173	39,1	1050	41,06
			9239	164	40,29	1400	56,4
			13271	149	42,41	2100	89,07
P0000823	ZHAGA 2X6 DA 1S - 12 LEDS 488 12000 lm 740 CNB	4000K	7243	176	39,1	1050	41,06
			9440	167	40,29	1400	56,4
			13561	152	42,41	2100	89,07
P0000824	ZHAGA 2X6 DA 1S - 12 LEDS 488 12000 lm 750 CNB	5000K	7065	172	39,1	1050	41,06
			9220	163	40,29	1400	56,4
			13278	149	42,41	2100	89,07

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X6 DA 1S - 12 LEDS 488 12000 lm 7xx	AT45C1050-106P	1050	45,9
	AT75C1400-108P	1400	63
	AT105C2100-110P	2100	99,6

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 12000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
