ZHAGA 2X6 DA 2S - 12 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

174 x 50mm

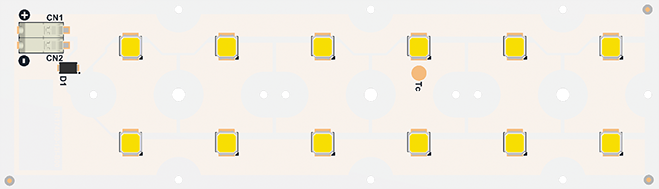

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000872	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 727 CNB	2700K	8292	145	81,8	700	57,26
P0000872	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 727 CNB	2700K	11917	132	86,17	1050	90,48
P0000873	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 730 CNB	3000K	9239	164	80,57	700	56,4
P0000873	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 730 CNB	3000K	13271	149	84,82	1050	89,07
P0000874	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 740 CNB	4000K	9440	167	80,57	700	56,4
P0000874	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 740 CNB	4000K	13561	152	84,82	1050	89,07
P0000875	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 750 CNB	5000K	9220	163	80,57	700	56,4
P0000875	ZHAGA 2X6 DA 2S - 12 LEDS 488 12000 lm 750 CNB	5000K	13278	149	84,82	1050	89,07

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 12000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
