ZHAGA 2X8 DA - 16 LEDS (219 / 319)

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

225 x 50mm

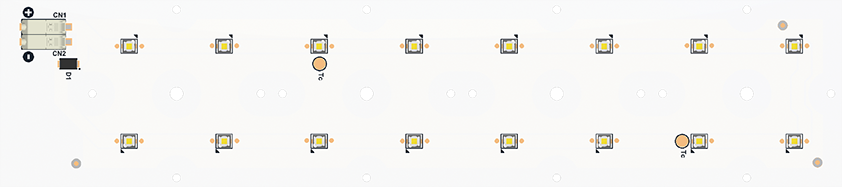

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000825	ZHAGA 2X8 DA - 16 LEDS 6400 lm 727 CNB	2700K	4262	133	45,93	700	32,15
P0000825	ZHAGA 2X8 DA - 16 LEDS 6400 lm 727 CNB	2700K	5978	120	47,64	1050	50,03
P0000826	ZHAGA 2X8 DA - 16 LEDS 6400 lm 730 CNB	3000K	4425	138	45,93	700	32,15
P0000826	ZHAGA 2X8 DA - 16 LEDS 6400 lm 730 CNB	3000K	6208	124	47,64	1050	50,03
P0000827	ZHAGA 2X8 DA - 16 LEDS 6400 lm 740 CNB	4000K	4752	148	45,93	700	32,15
P0000827	ZHAGA 2X8 DA - 16 LEDS 6400 lm 740 CNB	4000K	6666	133	47,64	1050	50,03
P0000828	ZHAGA 2X8 DA - 16 LEDS 6400 lm 750 CNB	5000K	4752	148	45,93	700	32,15
P0000828	ZHAGA 2X8 DA - 16 LEDS 6400 lm 750 CNB	5000K	6654	133	47,64	1050	50,03
P0000829	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 727 CNB	2700K	6309	130	46,35	1050	48,67
P0000829	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 727 CNB	2700K	8038	121	47,52	1400	66,54
P0000830	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 730 CNB	3000K	6532	134	46,35	1050	48,67
P0000830	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 730 CNB	3000K	8321	125	47,52	1400	66,54
P0000831	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 740 CNB	4000K	7037	145	46,35	1050	48,67
P0000831	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 740 CNB	4000K	8964	135	47,52	1400	66,54
P0000832	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 750 CNB	5000K	7080	145	46,35	1050	48,67
P0000832	ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 750 CNB	5000K	9027	136	47,52	1400	66,54

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X8 DA - 16 LEDS 6400 lm 7xx	AT45C1050-106P	700	35,3
ZHAGA 2X8 DA - 16 LEDS 6400 lm 7xx	AT45C1050-106P	1050	55,1
ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 7xx	AT45C1050-106P	1050	53,6
ZHAGA 2X8 DA - 16 LEDS 8800 lm ADV 7xx	AT75C1400-108P	1400	73,2

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 6400 lm Tc = 71ºC e ZHAGA 8800 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
