ZHAGA 2X8 DA 1S - 16 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

225 x 50mm

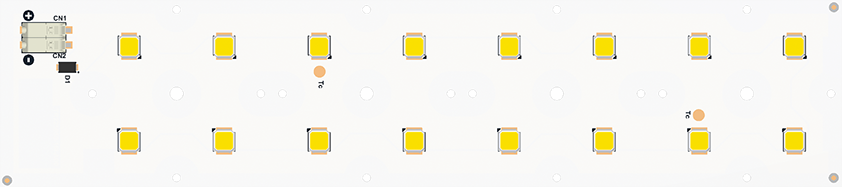

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000833	ZHAGA 2X8 DA 1S - 16 LEDS 488 13000 lm 727 CNB	2700K	6476	159	38,71	1050	40,65
			8484	153	39,7	1400	55,58
			12302	141	41,46	2100	87,08
P0000834	ZHAGA 2X8 DA 1S - 16 LEDS 488 13000 lm 730 CNB	3000K	7214	180	38,15	1050	40,06
			9452	173	39,1	1400	54,75
			13705	160	40,84	2100	85,78
P0000835	ZHAGA 2X8 DA 1S - 16 LEDS 488 13000 lm 740 CNB	4000K	7372	184	38,15	1050	40,06
			9658	176	39,1	1400	54,75
			14004	163	40,84	2100	85,78
P0000836	ZHAGA 2X8 DA 1S - 16 LEDS 488 13000 lm 750 CNB	5000K	7183	179	38,15	1050	40,06
			9420	172	39,1	1400	54,75
			13685	160	40,84	2100	85,78

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 2X8 DA 1S - 16 LEDS 488 16000 lm 7xx	AT45C1050-106P	1050	44,75
	AT75C1400-108P	1400	61,15
	AT105C2100-110P	2100	95,8

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 13000 lm Tc = 72ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.

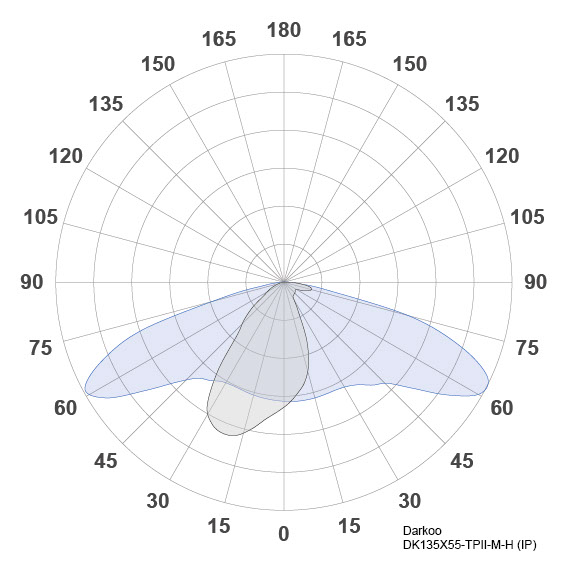

A Darkoo possui uma versão compatível com o tamanho Zhaga 225x50 com 16 LEDs na versão IP
