ZHAGA 2X8 DA 2S - 16 LEDS 488

CATALOGUE

< Back

Darkoo, Ledil

LED Link e Kathod

Push-pull connector

CNB

225 x 50mm

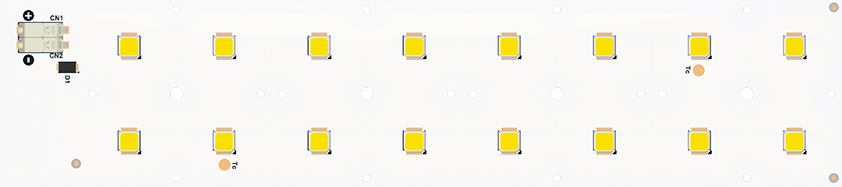

Illustrative image

Main applications:

Street Lights
Street Lights
Floodlights
Commercial Light
High Bays

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000876	ZHAGA 2X8 DA 2S - 16 LEDS 488 16000 lm 727 CNB	2700K	8484	153	79,4	700	55,58
			12302	141	82,93	1050	87,08
			15889	132	86,17	1400	120,64
P0000877	ZHAGA 2X8 DA 2S - 16 LEDS 488 16000 lm 730 CNB	3000K	9452	173	78,2	700	54,75
			13705	160	81,69	1050	85,78
			17695	149	84,82	1400	118,76
P0000878	ZHAGA 2X8 DA 2S - 16 LEDS 488 16000 lm 740 CNB	4000K	9658	176	78,2	700	54,75
			14004	163	81,69	1050	85,78
			18081	152	84,82	1400	118,76
P0000879	ZHAGA 2X8 DA 2S - 16 LEDS 488 16000 lm 750 CNB	5000K	9420	172	78,2	700	54,75
			13685	160	81,69	1050	85,78
			17703	149	84,82	1400	118,76

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 85ºC (ZHAGA 16000 lm Tc = 67ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 50 x 50 mm

LED quantity: 4

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
