ZHAGA 40 1FT 1R - 22 LEDS

< Back

Darkoo

Push-pull connector

CNC

280 x 40mm

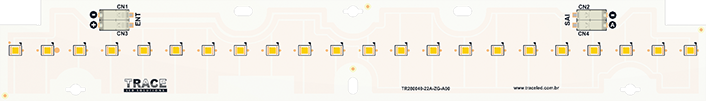

Illustrative image

Main applications:

Commercial Light
Luminárias Ex
Ceiling light

Internal Code	Model	CCT	Luminous Flux (lm)	Efficiency (lm/W)	Voltage (Vdc)	Current (mA)	Power (W)
P0000952	ZHAGA 40 1FT 1R - 22 LEDS 3300 lm 827 CNC	2700K	3190	135	67,75	350	23,71
P0000953	ZHAGA 40 1FT 1R - 22 LEDS 3300 lm 830 CNC	3000K	3308	140
P0000954	ZHAGA 40 1FT 1R - 22 LEDS 3300 lm 840 CNC	4000K	3355	141
P0000955	ZHAGA 40 1FT 1R - 22 LEDS 3300 lm 850 CNC	5000K	3462	146

Model	LED Driver	Current (mA)	Expected PWR (W)
ZHAGA 40 1FT 1R - 22 LEDS 3300 lm 8xx	AT30C350-48P	350	27,30

Other CCT on request.
The luminous flux, efficiency, voltage and power values are based on technical data provided by Nichia. Optical and thermal losses (luminaire mechanics) or electrical losses (LED Driver) are not being considered. All technical data refer to the LED module only. In order to obtain the final result of the luminaire, it must be subjected to tests in laboratories according to specific standards of the region of operation and application of the product. All values are theoretical, and there may be variations in the final result. Values based on Tj = 75ºC (ZHAGA 3300 lm Tc = 63ºC).
Average module voltage. This value can vary between +/- 15%. This variation should be considered when choosing the LED Driver.

Lens

Dimension: 280 x 40 mm

LED quantity: 22

Trace LED Solutions has no control over third party products. For this reason, we provide links to the manufacturers' websites for verification of compatibility.
